White 440volt 16amp Mini MCB Circuit Breakers

Product Categories
Wenzhou Xinchi International Trade Co.,Ltd
Contact Now

White 440volt 16amp Mini MCB Circuit Breakers

Place of Origin : Zhejiang, China

Brand Name : suntree / oem

Model Number : SL7-63

Supply Ability : 1000 Piece/Pieces per Month

Packaging Details : standard packing

MOQ : 120 Piece/Pieces

Price : $2.00 - $15.00 / Piece

Certification : IEC CE

Payment Terms : Western Union, L/C, T/T

Type : Mini, mini circuit breaker 415 volt

Poles Number : 1/2/3/4, 1/2/3/4

Color : White

guarantee time : 2 years

relative humidity : less than 90%

Rated current : 1A-63A

Rated voltage : 230/400V

Rated frequency : 50/60 Hz

Breaking capacity : 4.5/6KA

Certificate : TUV CE SAA

Port : ningbo/shanghai

Contact Now

Mini Circuit Breaker SL7 series ac type mcb 16 amp mini circuit breaker 230V 440 volt

Product Description
SL7-63 have protective function as shotrage as overload, and are used in lighting distribution systen in connerce and dwelling, and protrect fractional electric motors. and they also have many merits of high protective grade(up to IP20), high breaking capacity, reliable sensutive action, convenient, multi pole assemnling, long life ect. They are mainly adapted to the circuit of AC 50Hz, 250V in single pole, 415V in double, threee, four poles for protecting overload abd short circuit. Mean while, ther are also used in turning on or off the electric apparatus and lighting circuit under the normal conditions.
Product Parameters
Product Type
SL7-62
Standard
EN60898(IEC60898);IEC60947-2
Rated Current
1/2/3/4/6/10/16/20/25/32/40/50/63A
Rated Voltage
230V/250V/400BV/415V
Pole
1P/2P/3P/4P
Rated Breaking Capacity
4.5kA IEC60898(0.5-63A)
6kA IEC60947-2(0.5-63A)
Characteristic curve
B,C,D
Max.fuse that can be connected to
100AgL>10kA
Selective grade
3
Working ambient temperature
-5°C-- +40°C
Enclosed protective class
IP20
Electrical life
Not less than 8000 times
Mechanical life
Not lesss than 20000 times

White 440volt 16amp Mini MCB Circuit Breakers

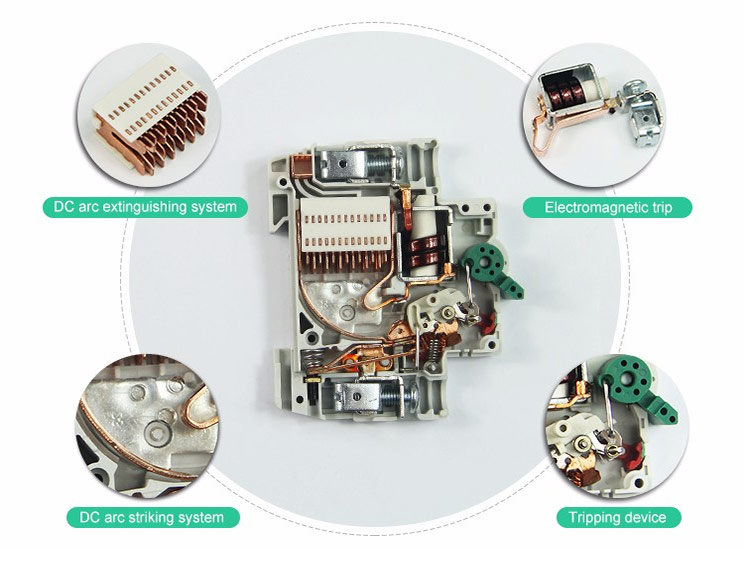

Detailed Images
White 440volt 16amp Mini MCB Circuit Breakers
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
White 440volt 16amp Mini MCB Circuit Breakers
White 440volt 16amp Mini MCB Circuit Breakers
White 440volt 16amp Mini MCB Circuit Breakers
FAQ
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
