CE TUV Isolator Switch 125A MCB Circuit Breakers

Product Categories
Wenzhou Xinchi International Trade Co.,Ltd
Contact Now

CE TUV Isolator Switch 125A MCB Circuit Breakers

Place of Origin : Zhejiang, China

Brand Name : SUNTREE

Model Number : SGT8-125

Supply Ability : 4000 Pack/Packs per Month

Packaging Details : standard packing

MOQ : 80 Piece/Pieces

Price : $1.00 - $15.00 / Piece

Max. Current : 125A

Max. Voltage : 690V

Type : Isolator Switch

Rated current : 125A

Rated voltage : 400V/230V

Frequency : AC 50 Hz/60Hz

rated shock withstand voltage : 6kV

Breaking Capacity : 3kA

Certificate : CE Rohs

Pole : 1P/2P/3P/4P

Standard : IEC60947-3

Material : Thermosetting material

Port : shanghai/ningbo

Contact Now

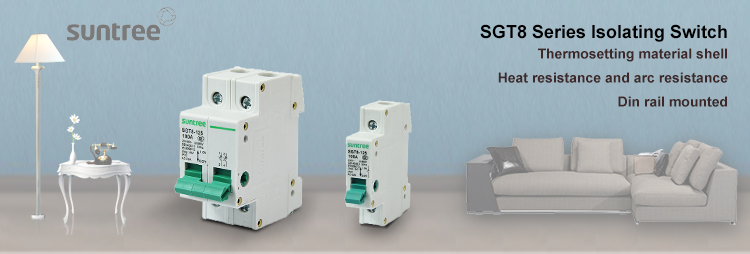

New Product Circuit Breaker Type Isolator Switch 125A

Product Description

1. Thermosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resitance, Excellent performance
2. Double contact design, Reliable action
3. optimal design for contact system and trip mechanism
4. Spring energy storage design to
5. din rail mounting,easily be used with Modular electrical devices
Product Parameters
Type
SGT8-125
Poles
1P/2P/3P/4P
Rated current
6-10-16-20-25-32-40-50-63-80-100-125A
Rated voltage
230V/400V
Rated insulation voltage
690V
Rated shock withstand voltage
6kV
Rated short-time withstand voltage
1.5kA
Rated chort circuit turn on capacity
3kA
Electrical life
6000times
Mechanical life
20000times
Curve
B,C,D
Certificate
TUV,CE,IEC,GB
Standards
IEC-60898.1
Connection terminal
Screw terminal / Pillar terminal with calmp
Product Details Show
CE TUV Isolator Switch 125A MCB Circuit Breakers
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
CE TUV Isolator Switch 125A MCB Circuit Breakers
CE TUV Isolator Switch 125A MCB Circuit Breakers
CE TUV Isolator Switch 125A MCB Circuit Breakers
FAQ
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
