SHLX-PV 8Strings DC Iron Solar Combiner Box

Name: SHLXPV 8Strings DC Iron Solar Combiner Box
Brand: suntree/oem
Price: 50.00 USD

SHLX-PV 8Strings DC Iron Solar Combiner Box Manufactures

Place of Origin : Zhejiang, China

Brand Name : suntree/oem

Model Number : SHLX-PV

Supply Ability : 200 Piece/Pieces per Week

Packaging Details : standard packing

MOQ : 1 Piece/Pieces

Price : $50.00 - $500.00 / Piece

Protection Level : IP65

Max current of each string : 0-20A

PV voltage range : DC 1000V

Certificate : IEC,ROHS,ISO,CE

color : GREY

material : iron

Output connection screw : PG16

Mechanical life : 10years

Application : Solar Power System

Brand : Suntree

Port : ningbo/shanghai

Contact Now

SHLX-PV Series 8 Strings PV Array Combiner Box DC Iron Material Solar Combiner Box

Product Description

SHLX-PV8/1 PV combiner box bus synthetic DC input of 8 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.

Design and configuration strictly accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014.

Provide users with a safe, brief, beautiful and applicable photovoltaic system products.

The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.

Product Parameters

Name	SHLX-PV8/1
System maximum dc voltage	1000
Maximum input current for each string	15A
Maximum input strings	8
Maximum output switch current	125A
Number of inverter MPPT	N
Number of Output strings	1
Category of test	‖ grade protection
Nominal discharge current	20ka
Maximum discharge current	40ka
Voltage protection level	3.8kv
Maximum continuous operating voltage Uc	1050A
Poles	3P
Structure characteristic	Plug-push module
Protection grade	IP65
Output switch	DC isolation switch(standard)/DC circuit
DC MC4/DC FUSE/DC Surge Protector	Standard
Monitoring module/Preventing diode	Optional
Installation method	Wall mounting type
Operating Temperature	-25℃--+55℃
Elevation of temperature	2km
Permissible relative humidity	0-95%, no condensation

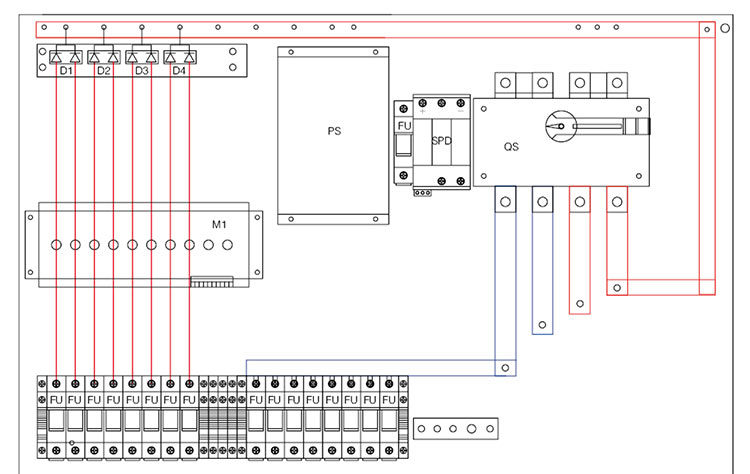

Product Details Show

SHLX-PV 8Strings DC Iron Solar Combiner Box

Our Advantages

♦High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.

♦Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.

♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.

Recommend Products

Company Profile

FAQ

Q: How can i trust you and your company ?

A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.

Q:How long is your products warranty ?

A: The warranty period of our products is 2 Years.

Q:How about inspection?

A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.

Q:What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.
